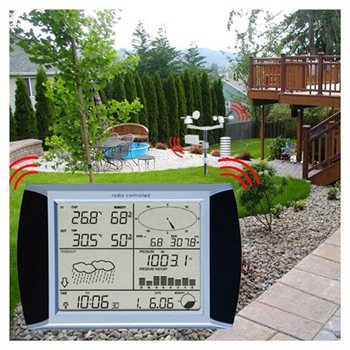

"The Dr. Tech Weather Station is a high performance wireless data logging weather station with advanced sensor technology resulting in good accuracy at a low cost. It provides instantaneous and historical data on Inside and Outside Temperature and Humidity, Wind Speed (average and gust), Wind Direction, Barometric Pressure and Rainfall. The backlit touch screen controller logs over 4080 data points with adjustable (5 minute minimum) sample interval. There is a memory meter on the display that shows when the memory is getting full so the data can be downloaded and archived to a computer thru the built in USB port and included software. The controller runs on 3 AA batteries and can be mounted up to 300 feet away from the sensor array. The transmit frequency is 915MHz and does not require a license. The sensor array runs up to 2 years on 2 AA batteries so there are no worries with mounting the array on top of a building or tower. The construction is white UV resistant thermoplastic with a stainless mast and pipe clamps for years of reliable service in the harshest environments. Complete system includes: Backlit wireless touch screen controller, advanced sensor array (anemometer, direction meter, temp/humidity sensor, rain gauge, mounting pole), USB cable for connection to PC, software, mounting hardware and instructions."
Features
(1000mm) Accuracy: +/- 10%
-40 to 65C (-40 to 149F) 0.1 C resolution
0 to 50C (32 to 122F) 0.1 deg resolution
0-100 MPH
0-9999mm (394 inches) 0.1mm resolution (1000mm) 1.0mm
27.13 to 31.89 inHg 0.01inHg resolution
300 Feet wireless range between Sensor and Controller
48 sec data update, instantaneous average and peak
Accuracy: +/- 1m/s (10 m/s) +/- 10% (10 m/s)
Accuracy: +/-3 hpa (abs) +/- 1.5 hpa (rel)
Alarm duration Up to 120 seconds
Applications
Barometric Pressure
Barometric Pressure with last 12hr history
Batteries 2 type AA LR6 2700mAh Alkaline (not included) gives 2 years battery life
Batteries 3 type AA LR6 Alkaline (not included) gives 1 year battery life
Built in data logging for 4080 readings: Unlimited with PC
Computer Interface USB
Construction UV resistant white thermoplastic and stainless mounting pole
Controller Specs
Dimensions (L x W x H) 235 x 146 x 38mm (9.25" x 5.75" x 1.5")
Display Backlit LCD
Display Ranges
Displays in C or F Accuracy: +/-3C
Displays in inHG or hPa
Displays in mm or inches (hour,day,week,month or total)
Displays in mph, m/s, km/h, knots or Beaufort
General Specs
Humidity 10 to 99% (1% resolution) Accuracy: +/-5%
Indoor Temperature
Inside and outside temperature and humidity
LCD Compass 22.5 resolution
Memory Capacity 4080 data samples (memory meter on display)
Mounting Pole mount using 2 stainless pole clamps
Mounting Wall or desktop
Operating Distance Up to 100 meters (300 feet) between sensor array and controller
Operating Frequency 915 MHz
Outdoor Temperature
Plug and Play - Easy setup and operation
Rain Gauge
Rain Gauge with last hour, day, week, month or total
Remote Temperature and Humidity Monitoring
Sensor battery life 2 years on 2 AA LR6 Alkaline batteries
Settable Alarms
Settable Alarms and Touch Screen Operation
Setup Touch Screen or Computer
Shipping Weight 3.2kg (7lbs)
Specifications
Temperature, Humidity, Wind Chill, Dew Point, Rainfall, Wind Speed, Barometric Pressure, Storm Warning
Time Display 12hr or 24hr
Time Setting Automatic thru WWVB/DCF or manual
Update Interval 48 secs
Weather Tracking and Forecasting
Wind Chill and Dew point temperature display
Wind Direction
Wind Speed
Wind Speed and Direction including average and gust
Wind Survivability 200 km/h (125 mph)
Wind Turbine Site Survey - Record wind speed at site over time to determine available true wind power
Wireless Transmitter / Sensor Array
Product Attributes
Electric Power Supply: Battery Operated
