The Viewsonic PJD5223 DLP Projector is packed with amazing features that make your presentations livelier than ever. It delivers amazingly clear images with 2700 ANSI lumens, which makes it ideal for use in business, education or at home. The 3000:1 contrast ratio and XGA 1024 x 768 native solution work together and complement this portable projector's lumens count. Further, the BrilliantColor technology makes sure you get the best quality of video on display each and every time. This Viewsonic 2700 lumens DLP projector is also 3D-ready and is equipped with a 6-segment color wheel that lets you control zoom and picture size depending on your needs. Two computer inputs, an RS232 interface, an S-video input and a USB port allow connecting with portable media devices. On the other hand, the dedicated I/O ports for audio make this Viewsonic DLP 1080P XGA projector highly versatile when it comes to connectivity. Its lightweight design and extended lamp life make it portable.

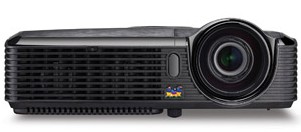

Viewsonic PJD5223 DLP Projector:
Brilliant presentations in almost any lighting condition with 2700 lumens
Lightweight, travel-friendly design (just 5.7 lb)
Native XGA (1024 x 768) resolution for remarkable clarity and color
3D-ready powered by DLP Link technology
BrilliantColor technology delivers stunning all-digital clarity with life-like color, sharp graphics and outstanding video
3,000:1 high contrast ratio makes your presentations vibrant
6-segment color wheel enhances the yellow color performance
Energy-saving eco-mode provide for easy maintenance and longer product life
General
Depth: 9.2 in
Enclosure Color: Black
Height: 3.2 in
Weight: 5.7 lbs
Width: 11.2 in
Device Type: DLP projector
Built-in Devices: Speaker
Software / System Requirements
Software Included: ViewSonic Wizard
Power
Power Device: Power adapter
Voltage Required: AC 120/230 V ( 50/60 Hz )
Power Consumption Operational: 235 Watt
Miscellaneous
Cables Included: 1 x VGA cable
Compliant Standards: CE, CSA, UL, C-Tick, cUL, ICES-003, NOM, SASO, CB, CCC, DOC, PSB, FCC, RoHS, GOST-R, REACH, ErP Ready, UkrSEPRO
Expansion / Connectivity
Interfaces: 2 x VGA / component video input - 15 pin HD D-Sub (HD-15) ¦ 1 x VGA output - 15 pin HD D-Sub (HD-15) ¦ 1 x composite video input - RCA ¦ 1 x S-video input - 4 pin mini-DIN ¦ 1 x audio line-in - mini-phone 3.5 mm ¦ 1 x audio line-out - mini-phone 3.5 mm ¦ 1 x remote control - 9 pin D-Sub (DB-9) ¦ 1 x USB - 4 pin USB Type B
Input Device
Type: Remote control - wireless
Environmental Parameters
Min Operating Temperature: 32 °F
Max Operating Temperature: 104 °F
Humidity Range Operating: 10 - 80% (non-condensing)
Sound Emission: 32 dB
Manufacturer Warranty
Service & Support: 3 years warranty
Service & Support Details: Limited warranty - parts and labor - 3 years ¦ Limited warranty - lamp - 1 year ¦ Limited warranty - replacement - 1 year
Projector / Panel
Image Brightness: 2700 ANSI lumens
Image Contrast Ratio: 2000:1 / 3000:1 (dynamic)
Image Size: 27.6 in - 299 in
Projection Distance: 4 ft - 33 ft
Resolution: XGA - XGA (1024 x 768)
Native Aspect Ratio: 4:3
Max Sync Rate (V x H): 120 Hz x 100 kHz
Lamp Type: 180 Watt
Lamp Life Cycle: 5000 hour(s) / 6000 hour(s) (economic mode)
Projector Lens System
Focus Type: Manual
Zoom Type: Manual
Zoom Factor: 1.1x
Keystone Correction Direction: Vertical
Vertical Keystone Correction: -40 / +40
Video Input
Analog Video Format: PAL-B/G, PAL-N, PAL-M, PAL-I, NTSC 4.43, PAL 60, NTSC 3.58, PAL-D, SECAM L, PAL-H, SECAM K1, SECAM D/K, SECAM B/G
Analog Video Signal: RGB, S-Video, composite video
Audio Output
Type: Speaker(s) - internal
Sound Output Mode: Mono
Output Power / Channel: 1 Watt
Speaker(s): 1 x mixed channel
