General
Depth:  9.9 in
Height:  5 in
Weight:  7.5 lbs
Width:  11.4 in

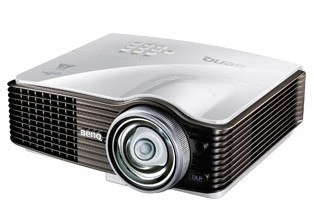

Device Type:  DLP projector
Built-in Devices:  Stereo speakers
Power
Power Device:  Power supply - internal
Voltage Required:  AC 120/230 V ( 50/60 Hz )
Power Consumption Operational:  290 Watt
Miscellaneous
Cables Included:  1 x VGA cable
Expansion / Connectivity
Interfaces:  1 x S-video input - 4 pin mini-DIN ¦ 1 x composite video input - RCA ¦ 1 x audio line-in - RCA phono x 2 ¦ 1 x RGB output - 15 pin HD D-Sub (HD-15) ¦ 1 x serial RS-232 - 9 pin mini-DIN ¦ 1 x serial RS-232 - 9 pin D-Sub (DB-9) ¦ 1 x USB - mini-USB Type B ¦ 1 x audio line-out - mini-phone stereo 3.5 mm ¦ 1 x audio line-out - mini-phone stereo 3.5 mm ¦ 2 x component video / RGB input - 15 pin HD D-Sub (HD-15) ¦ 1 x microphone input - mini-phone 3.5 mm ¦ 1 x network - RJ-45 ¦ 1 x USB - 4 pin USB Type A
Input Device
Type:  Remote control - external - wireless
Environmental Parameters
Sound Emission:  32 dB
Manufacturer Warranty
Service & Support:  1 year warranty
Service & Support Details:  Limited warranty - 1 year
Projector / Panel
Image Brightness:  2500 ANSI lumens
Image Contrast Ratio:  4600:1
Image Size:  48 in - 300 in
Resolution:  WXGA - WXGA (1280 x 800) (native) / 1600 x 1200 (resized)
Native Aspect Ratio:  Widescreen
Max Sync Rate (V x H):  120 Hz x 99 kHz
Lamp Type:  210 Watt
Lamp Life Cycle:  4000 hour(s) / 5000 hour(s) (economic mode)
Projector Lens System
Keystone Correction Direction:  Vertical
Vertical Keystone Correction:  -30 / +30
Lens Aperture:  F/2.6
Video Input
Analog Video Format:  NTSC, SECAM, PAL
Analog Video Signal:  RGB, S-Video, composite video
Audio Output
Type:  Speaker(s) - integrated
Sound Output Mode:  Stereo
Output Power / Channel:  10 Watt
Speaker(s):  2 x right / left channel
Video Output
Analog Video Signal:  RGB
