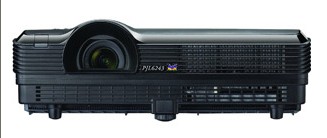

The PJL6243 is an advanced 3LCD projector, which delivers 3000 ANSI lumens with a 1024 x 768 XGA resolution. This projector is designed for tabletop use or can be mounted on the ceiling with 1.2x optical zoom lens and integrated speaker ideal for classrooms and meeting rooms. The top load lamp and bottom filter with slide design provide for easy maintenance. There are seven default picture modes: standard, real, dynamic, blackboard, color board (red/blue/yellow/green) modes to choose from depending on the user's projected screen. Eco energy saving mode helps extend the lamp life and reduces the fan noise. For increased security, a PIN lock feature allows you to set a password to prevent unauthorized use and Kensington security lock port provides for anti-theft protection.
ViewSonic PJL6243 3LCD Projector:
- Brilliant presentations in almost any lighting condition with 3000 lumens
- Lightweight, travel-friendly design (just 5.7 lbs)
- Native XGA (1024 x 768) resolution for remarkable clarity and color
- Supports HD 720p and 1080i/p
- Greater positioning flexibility with 1.2x optical zoom
- Eco Mode for energy savings, longer lamp life and reduced fan noise
General
Depth: 9.9 in
Enclosure Color: Black
Height: 4.2 in
Weight: 5.7 lbs
Width: 13.4 in
Device Type: LCD projector
Built-in Devices: Speaker
Software / System Requirements
Software Included: ViewSonic Wizard
Power
Power Device: Power adapter
Voltage Required: AC 120/230 V ( 50/60 Hz )
Power Consumption Operational: 286 Watt
Miscellaneous
Cables Included: 1 x VGA cable
Included Accessories: Lens cover
Compliant Standards: FCC Class B certified, CE, UL, C-Tick, cUL, CCC, RoHS, WEEE, ErP Ready
Expansion / Connectivity
Interfaces: 1 x component video / VGA / S-video input - 15 pin HD D-Sub (HD-15) ¦ 1 x VGA input / output - 15 pin HD D-Sub (HD-15) ¦ 1 x composite video input - RCA ¦ 1 x audio line-in - mini-phone stereo 3.5 mm ¦ 1 x audio line-in - RCA phono x 2 ¦ 1 x audio line-out - mini-phone stereo 3.5 mm ¦ 1 x serial RS-232 - 9 pin D-Sub (DB-9) ¦ 1 x management - RJ-45
Input Device
Type: Remote control - wireless
Environmental Parameters
Min Operating Temperature: 41 °F
Max Operating Temperature: 95 °F
Humidity Range Operating: 20 - 80% (non-condensing)
Sound Emission: 34 dB
Manufacturer Warranty
Service & Support: 3 years warranty
Service & Support Details: Limited warranty - parts - 3 years ¦ Limited warranty - lamp - 1 year ¦ Limited warranty - express exchange - 1 year
Projector / Panel
Image Brightness: 3000 ANSI lumens
Image Contrast Ratio: 2000:1 / 4200:1 (dynamic)
Image Size: 39.4 in - 300 in
Projection Distance: 3.6 ft - 29 ft
Resolution: XGA - XGA (1024 x 768) (native) / 1600 x 1200 (resized)
Native Aspect Ratio: 4:3
Max Sync Rate (V x H): 100 Hz x 100 kHz
Lamp Type: 215 Watt
Lamp Life Cycle: 4000 hour(s) / 6000 hour(s) (economic mode)
Projector Lens System
Focus Type: Manual
Zoom Type: Manual
Zoom Factor: 1.2x
Keystone Correction Direction: Vertical
Vertical Keystone Correction: -30 / +30
Video Input
Analog Video Format: SECAM, PAL-B/G, PAL-N, PAL-M, PAL-I, NTSC 4.43, NTSC 3.58, PAL-D, PAL-H
Analog Video Signal: RGB, composite video
Audio Output
Type: Speaker(s) - integrated
Sound Output Mode: Mono
Output Power / Channel: 10 Watt
Speaker(s): 1 x mixed channel
