General
Depth: 10.1 in
Height: 3.9 in
Weight: 6.6 lbs
Width: 13.3 in

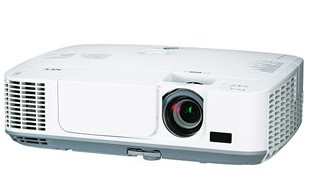

Device Type: LCD projector - High Definition 720p
Built-in Devices: Speaker
Software / System Requirements
Software Included: Drivers & Utilities
Power
Power Device: Power supply - internal
Voltage Required: AC 120/230 V ( 50/60 Hz )
Power Consumption Operational: 311 Watt
Miscellaneous
Cables Included: 1 x VGA cable - 6 ft
Included Accessories: Carrying case, lens cover
Compliant Standards: CSA, NOM, ICES-003 Class B, FCC Part 15 B, DDC/CI, UL 60950-1
Expansion / Connectivity
Interfaces: 2 x VGA / component video input - 15 pin HD D-Sub (HD-15) ¦ 1 x VGA output - 15 pin HD D-Sub (HD-15) ¦ 1 x HDMI input - 19 pin HDMI Type A ¦ 1 x composite video input - RCA ¦ 1 x S-video input - 4 pin mini-DIN ¦ 1 x audio line-in - RCA phono x 2 ¦ 2 x audio line-in - mini-phone stereo 3.5 mm ¦ 1 x audio line-out - mini-phone stereo 3.5 mm ¦ 1 x serial RS-232 - 9 pin D-Sub (DB-9) ¦ 1 x network - RJ-45 ¦ 1 x USB - 4 pin USB Type B ¦ 2 x Hi-Speed USB - 4 pin USB Type A
Input Device
Type: Remote control - external - wireless
Environmental Parameters
Min Operating Temperature: 41 °F
Max Operating Temperature: 104 °F
Humidity Range Operating: 20 - 80% (non-condensing)
Sound Emission: 35 dB
Manufacturer Warranty
Service & Support: 2 years warranty
Service & Support Details: Limited warranty - parts and labor - 2 years ¦ Limited warranty - lamp - 1 year / 500 hours
Projector / Panel
Image Brightness: 3000 ANSI lumens
Image Contrast Ratio: 2000:1
Image Size: 25.2 in - 299 in
Projection Distance: 2.3 ft - 48 ft
Resolution: WXGA - WXGA (1280 x 800) (native) / 1600 x 1200 (resized)
Native Aspect Ratio: Widescreen
Max Sync Rate (V x H): 120 Hz x 100 kHz
Lamp Type: 230 Watt
Lamp Life Cycle: 4000 hour(s) / 5000 hour(s) (economic mode)
Projector Lens System
Focus Type: Manual
Zoom Type: Manual
Zoom Factor: 1.7x
Keystone Correction Direction: Vertical
Vertical Keystone Correction: -30 / +30
Lens Aperture: F/1.7-2.2
Video Input
Analog Video Format: NTSC, SECAM, PAL, PAL-N, PAL-M, NTSC 4.43, PAL 60
Analog Video Signal: RGB, S-Video, composite video
Digital Video Standard: High-Definition Multimedia Interface (HDMI)
Audio Output
Type: Speaker(s) - integrated
Sound Output Mode: Mono
Output Power / Channel: 10 Watt
