With 3500 Lumens and WXGA native resolution, the Sharp 3D Ready DLP Projector is an excellent choice for classroom/lecture hall and corporate conference room applications. In addition to incorporating the latest BrilliantColor DLP technology with DLP Link (for high quality 3D projection from a single projector), the PG-D3550W offers a 7W audio system, RJ-45 network connector, built-in closed caption decoder and sealed DLP chip with filter-free design. With a standby power consumption as low as 0.32W and an estimated lamp life of up to 5,000 hours, this slim and lightweight RoHS compatible projector is exceptionally environmentally friendly.

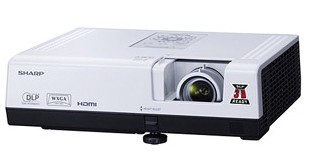

Sharp 3D Ready DLP Projector, PG-D3550W:
- Brilliant presentations in almost any lighting condition with 3500 lumens
- Native XGA (1280 x 800) resolution for remarkable clarity and color
- 3D Ready with DLP link Technology
- BrilliantColor DLP Technology (2,000:1 Contrast Ratio)
- Sealed DLP chip with filter-free design
- Wide connectivity including RJ-45 network connector
- High output 7W audio system
- Presentation assist remote with PC/mouse control
- Energy-efficient lamp life of up to 5,000 hours
General
Depth: 9.3 in
Height: 3.1 in
Weight: 6.2 lbs
Width: 11.8 in
Device Type: DLP projector - High Definition 720p
Built-in Devices: Speaker
Power
Power Device: Power adapter - internal
Voltage Required: AC 120/230 V ( 50/60 Hz )
Miscellaneous
Cables Included: 1 x VGA cable
Included Accessories: Lens cover, cable case
Compliant Standards: FCC Class A certified, UL
Expansion / Connectivity
Interfaces: 1 x HDMI input - 19 pin HDMI Type A ¦ 2 x VGA / component video input - 15 pin HD D-Sub (HD-15) ¦ 1 x S-video input - 4 pin mini-DIN ¦ 1 x composite video input - RCA ¦ 1 x audio line-in - mini-phone stereo 3.5 mm ¦ 1 x audio line-in - RCA x 2 ¦ 1 x VGA / component video output - 15 pin HD D-Sub (HD-15) ¦ 1 x audio line-out - mini-phone stereo 3.5 mm ¦ 1 x network - RJ-45 ( management ) ¦ 1 x USB - 4 pin USB Type B ( management ) ¦ 1 x serial RS-232C - 9 pin D-Sub (DB-9) ( management )
Input Device
Movement Detection Technology: Infrared
Type: Remote control - external - wireless
Environmental Parameters
Min Operating Temperature: 41 °F
Max Operating Temperature: 95 °F
Sound Emission: 38 dB
Manufacturer Warranty
Service & Support: 3 years warranty
Service & Support Details: Limited warranty - parts and labor - 3 years ¦ Limited warranty - lamp - 90 days
Projector / Panel
Image Brightness: 3500 ANSI lumens
Image Contrast Ratio: 2000:1
Image Size: 40.2 in - 300 in
Resolution: WXGA - WXGA (1280 x 800) (native) / 1600 x 1200 (resized)
Native Aspect Ratio: Widescreen
Max Sync Rate (V x H): 85 Hz x 110 kHz
Lamp Type: 250 Watt
Lamp Life Cycle: 2000 hour(s) / 4000 hour(s) (economic mode)
Projector Lens System
Zoom Type: Manual
Zoom Factor: 1.2x
Lens Aperture: F/2.4-2.6
Video Input
Analog Video Format: NTSC, SECAM, PAL
Analog Video Signal: RGB, S-Video, composite video, component video
Digital Video Standard: High-Definition Multimedia Interface (HDMI)
Audio Output
Type: Speaker(s) - integrated
Sound Output Mode: Mono
Output Power / Channel: 7 Watt
Speaker(s): 1 x mixed channel
Video Output
Analog Video Signal: RGB, component video
